DEUTZ-Factory Built Power Packs
TCD 9.0 L4

DEUTZ factory-built TCD 9.0 Power Packs are compact, ready-to-install engine solutions designed for mobile machinery in construction, agriculture, and industry. The TCD 9.0 L4 model features a robust 4-cylinder diesel engine, tested for extreme conditions. These Power Packs offer low installation and operational costs, flexible configuration options, and compliance with global emission standards. With identical performance across markets, they simplify design for manufacturers and include a mounted cooling system, optional fan types, and a warranty equal to new DEUTZ engines.

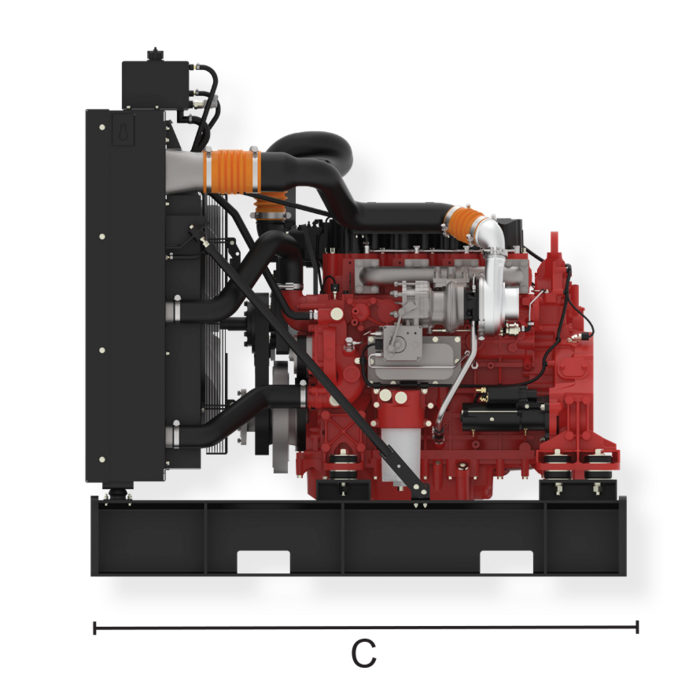

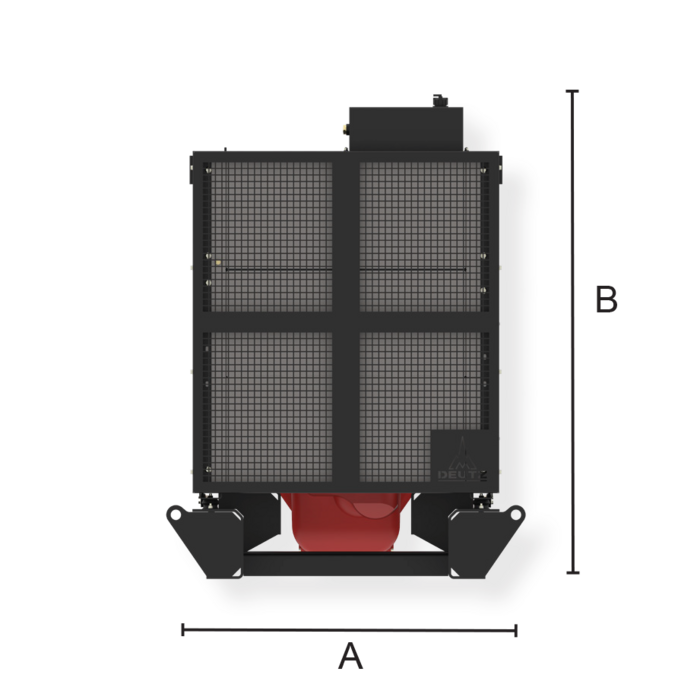

Dimensions
| Power Pack | A | B | C | |
|---|---|---|---|---|
| TCD 9.0 L4 - Pedestal | mm / in | 1261/49.6 | 1860/73.2 | 1737/68.4 |

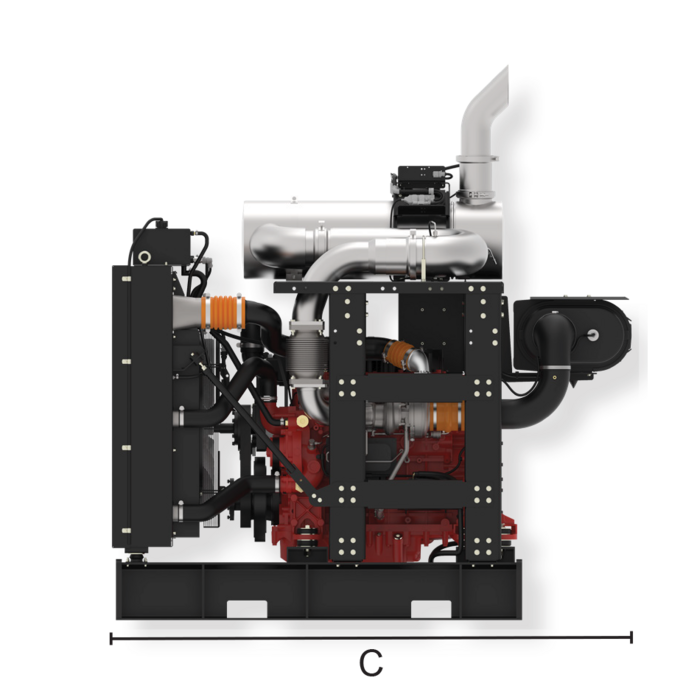

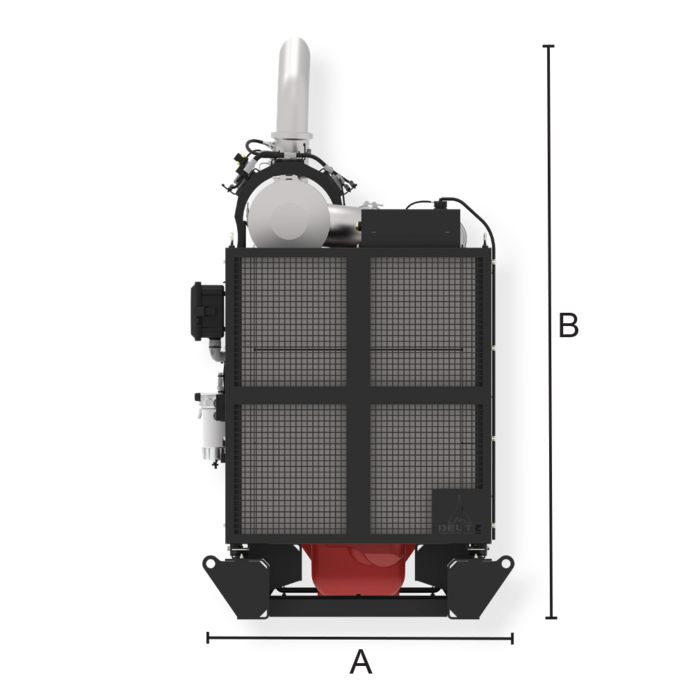

Dimensions
| Power Pack | A | B | C | |
|---|---|---|---|---|
| TCD 9.0 L4 - Open | mm / in | 1261/49.6 | 2354/92.7 | 2194/86.3 |
