DEUTZ-Factory Built Power Packs

TCD 3.6 L4

DEUTZ  factory-built 3.6 Power Packs are compact, ready-to-install engine solutions for mobile machinery in construction, agriculture, and industry. Fully tested and low-cost to operate, they offer high performance, including a 75hp PTO option for OEM needs. Available in Pedestal, Open Skid, and Closed Skid versions, they feature water-cooled 4-cylinder diesel engines compliant with EPA Tier 4 Final. With maintenance-free DOC exhaust systems and export options, they support downsizing while maintaining DEUTZ reliability.



Dimensions

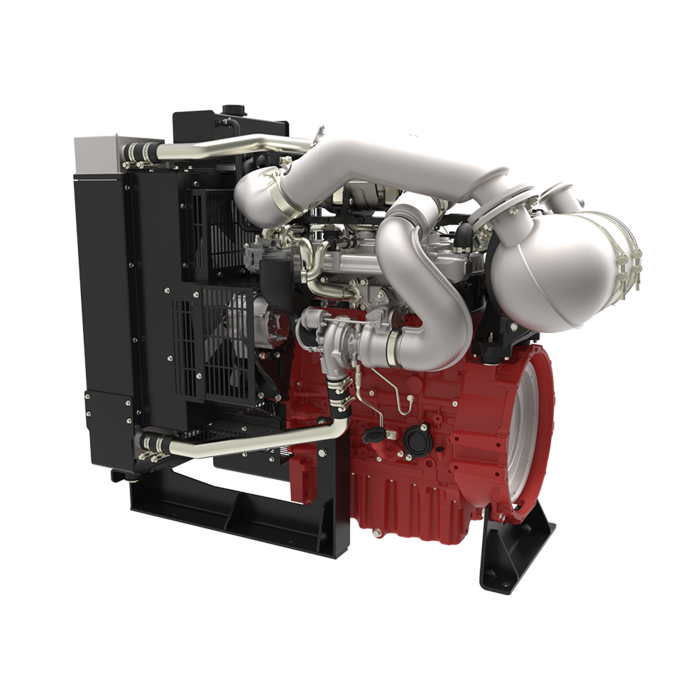

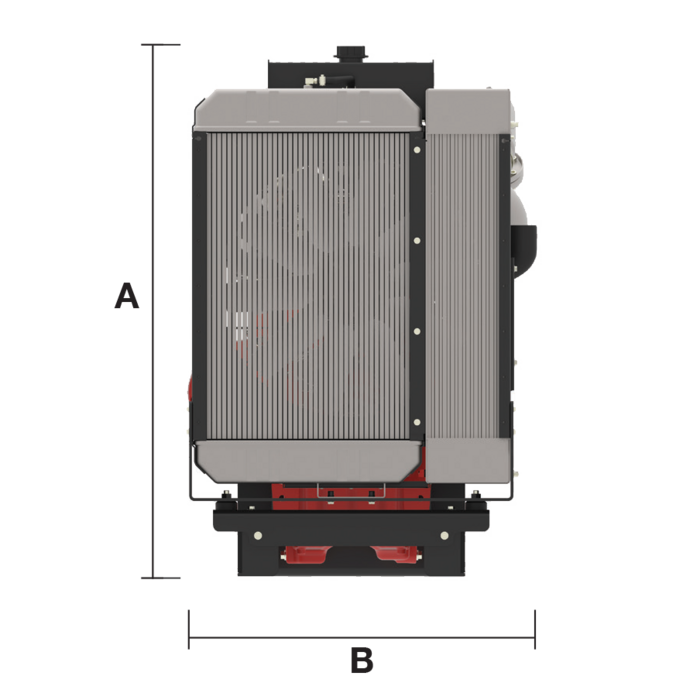

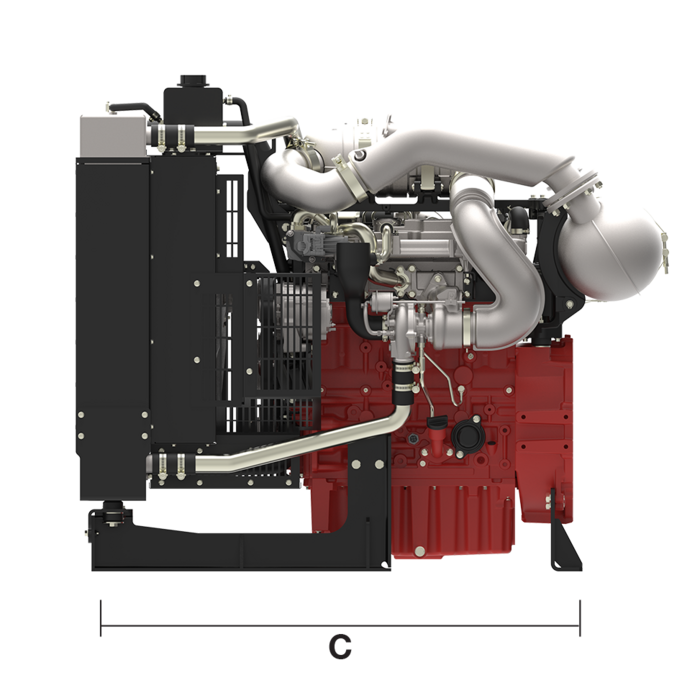

TD/TCD 3.6 PEDESTAL ABC
TD 3.6 Pedestal Power Packmm / in1077/42.4770/30.31354/53.3
TCD 3.6 Pedestal Power Packmm / in1169/46.0771/30.41157/45.6

Dimensions

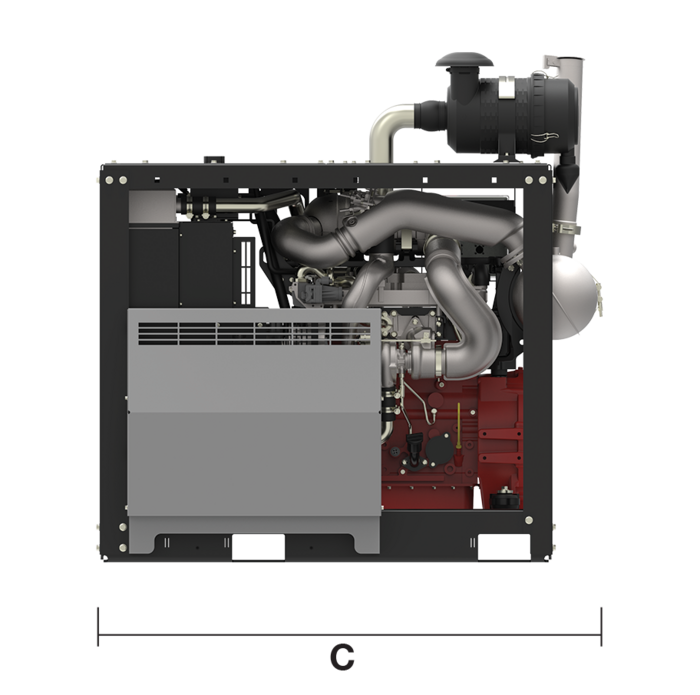

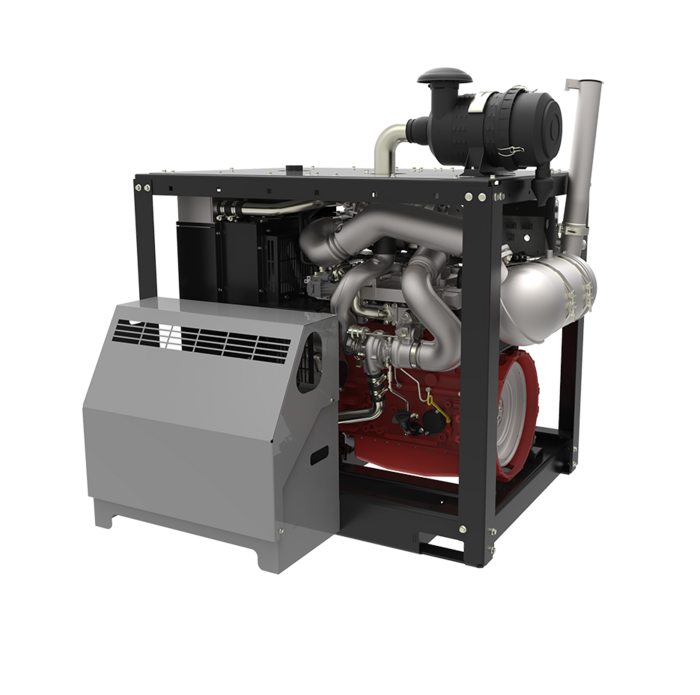

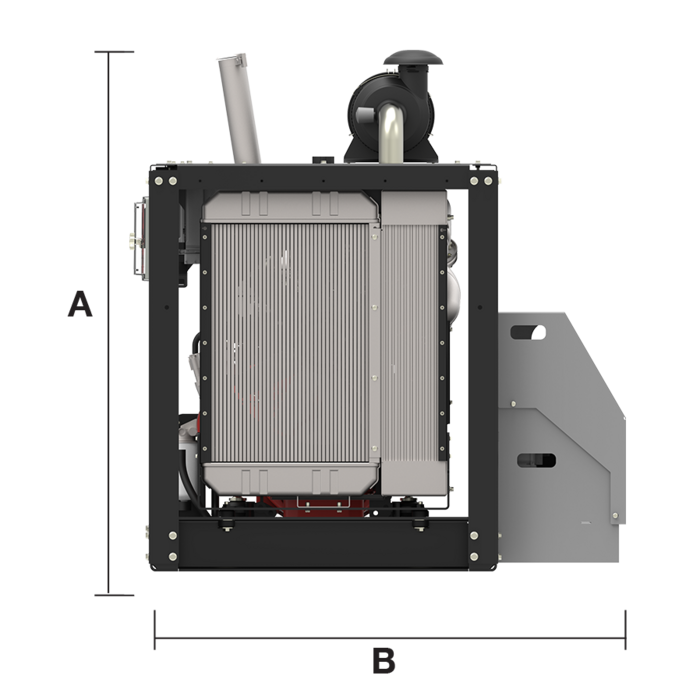

TD/TCD 3.6 OPEN ABC
TD 3.6 Open Power Packmm / in1303/51.3828/32.61215/47.8
TCD 3.6 Open Power Packmm / in1480/58.31720/67.71455/57.3

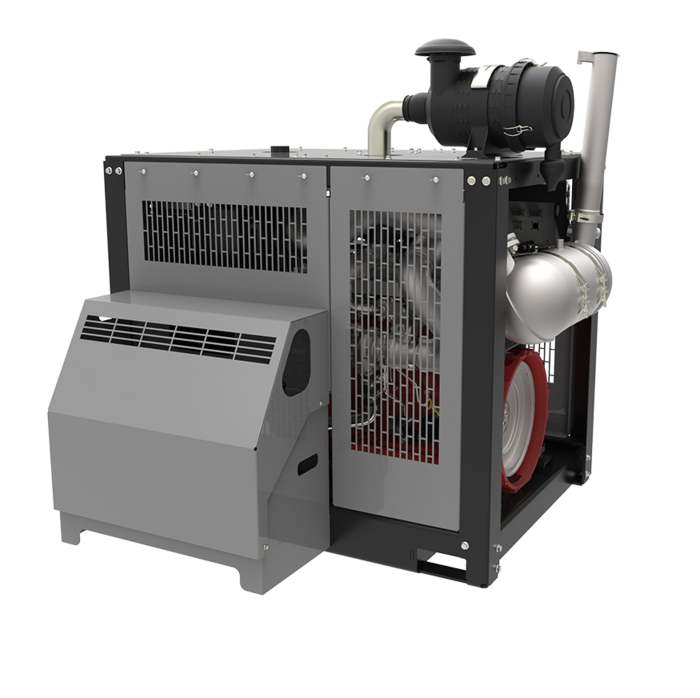

Dimensions

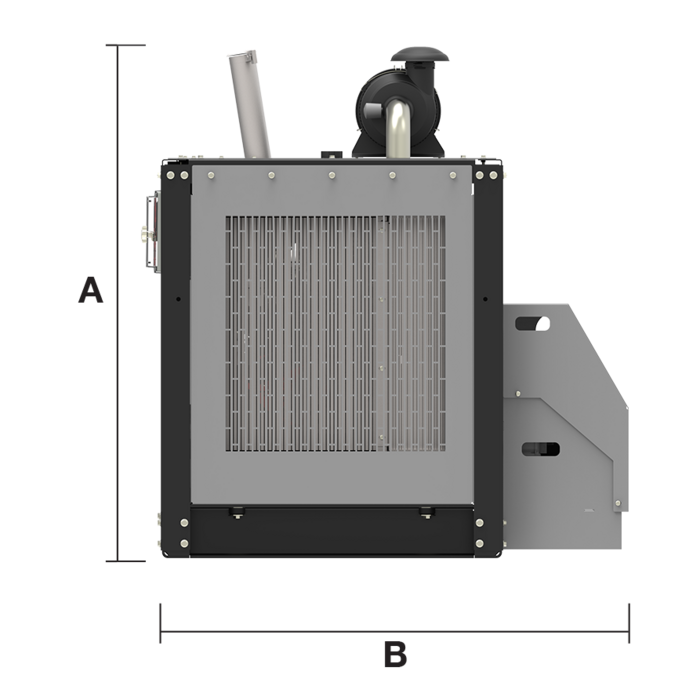

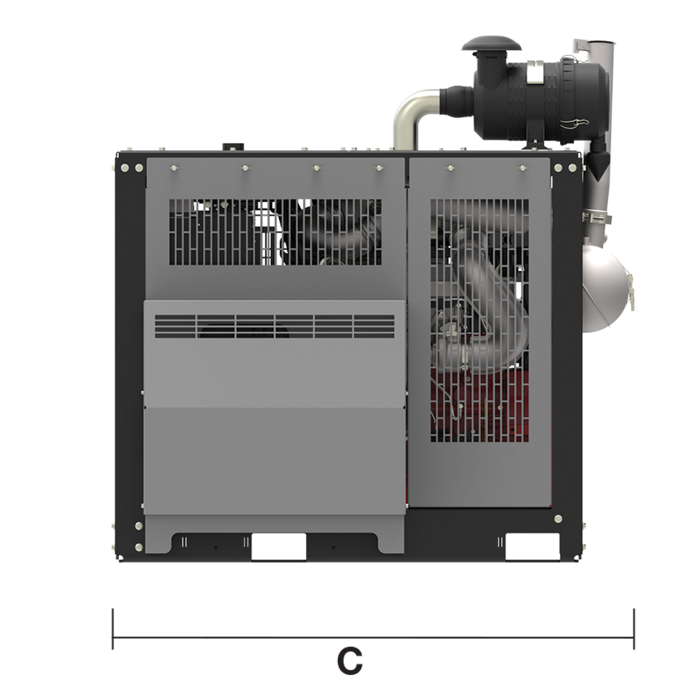

TD/TCD 3.6 CLOSED ABC
TD 3.6 Closed Power Packmm / in1304/51.4828/32.61401/55.2
TCD 3.6 Closed Power Packmm / in1480/58.31357/53.41455/57.3
