DEUTZ-Factory Built Power Packs
TCD 3.6 L4
DEUTZ factory-built 3.6 Power Packs are compact, ready-to-install engine solutions for mobile machinery in construction, agriculture, and industry. Fully tested and low-cost to operate, they offer high performance, including a 75hp PTO option for OEM needs. Available in Pedestal, Open Skid, and Closed Skid versions, they feature water-cooled 4-cylinder diesel engines compliant with EPA Tier 4 Final. With maintenance-free DOC exhaust systems and export options, they support downsizing while maintaining DEUTZ reliability.
General Details
45-100 kW / 60-135 hp at 2300-2600 min-1/rpm
USA EPA Tier 4 Final
- DEUTZ factory-built Power Packs are compact, ready-to-install engine solutions for mobile machinery. Designed for use in the construction, agricultural and industrial markets, each Power Pack is fully tested and validated to offer a robust and completely integrated power package. Not only are they easy to install, but they also offer the industry’s lowest installed and operational costs. And, they come with the same exclusive warranty as new DEUTZ engines.
- The DEUTZ TCD3.6 complete “drop-in,” ready-to-run packages are available with the unique option of a high powered (75hp) auxiliary-gear-driven side PTO, suitable for driving compact hydraulic pumps and compressors for OEM equipment.
- All normally aspirated and turbocharged 3.6 Power Pack units comply with EPA Tier 4 Final. Turbo-charged and charge-air-turbo-charged models range from 60 to 135hp (45 -100 kW).

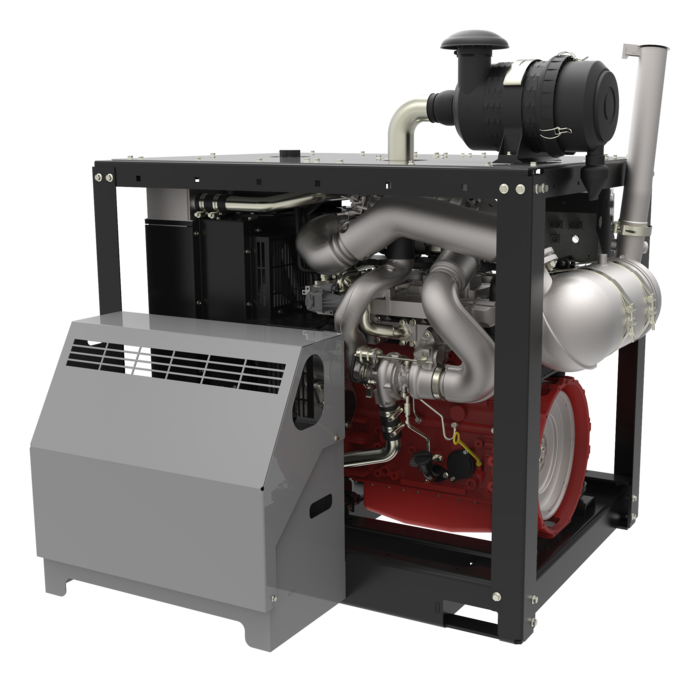

- Power Packs are available in three different versions: Pedestal, Open Skid and Closed Skid. Each version is supported with a large range of options and accessories. Both the Open Skid and Closed Skid Power Packs are free-standing.
- Power Packs feature newly designed, water-cooled, 4-cylinder, inline diesel engines with cooled, externalexhaust-gas recirculation. The engine range meets current North American emission requirements, with versions available for export to lower regulated countries (LRC).
- Use of a DVERT® oxidation catalyst (DOC) enables maintenance-free operation under all applications and ambient conditions. The DOC is a modular exhaust after-treatment (EAT) that comes pre-mounted to the engine, maintaining a compact design. Each unit includes a cooling package, and engines can be equipped with a suction or pusher fan.
- Suitable for “downsizing,” this power range of DEUTZ engines can replace Tier 3 (flex) 4.5-liter engines while offering the same performance and reliability associated with all DEUTZ engines and powered equipment.
